The following troubleshooting steps can be taken to address the "No Signal Lock" issue with the Winegard RoadTrip antenna:

1. Check for Optimal Antenna Placement:

   • The antenna needs a clear line of sight to the satellites, ideally towards the southern sky (between southern Texas and southern California).
   • Obstructions like trees, buildings, or power lines can interfere with the signal.
   • The general rule is to be twice as far away from an object as it is tall to avoid blockage.
   • The RV Halo app (iOS and Android) can help identify potential obstructions and find the best antenna placement. Use the app at the antenna's height for accurate readings.

2. Verify Dip Switch Settings and Connections:

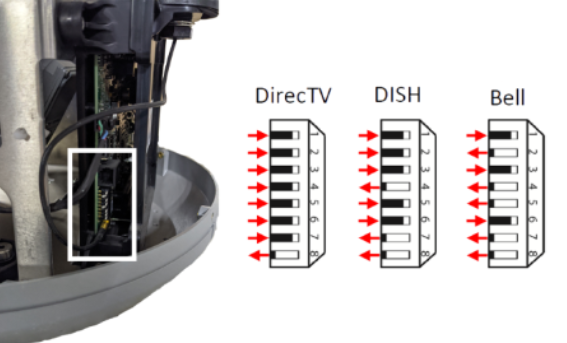

   • Ensure the dip switches on the antenna are set correctly for your satellite provider.


1. Connect the receiver to the antenna's main port and power on the antenna to initiate a search.


1. Observe the Search Process:

   • The search typically takes 3-7 minutes.
   • In-Motion models will enter a "conical search" after finding the signal, which involves rapid movements and may sound like a washing machine. This is normal and lasts about 7 minutes.
   • If the conical search doesn't start after finding the signal, contact Winegard Customer Support.

2. Check for Signal on the Receiver:

   • If the receiver displays a signal, the antenna is working correctly. Complete the receiver setup if needed.
   • If there's no signal:
     • Run an external coaxial cable directly from the antenna's main port to the receiver (bypassing the RV's internal wiring).
     • If still no signal, try connecting the receiver to the antenna's secondary port.
     • If none of these steps work, contact Winegard Customer Support for further assistance.
