Troubleshooting: Winegard Router NO SIM Error

Troubleshooting: Winegard Router NO SIM Error

Issue:

You're encountering a "NO SIM" error on your Winegard router, indicating that the router isn't detecting the inserted SIM card. This prevents you from accessing cellular connectivity.

Possible Causes:

  1. SIM Card Issue:
    1. The SIM card might be inserted incorrectly.
    2. The SIM card could be damaged.
    3. The SIM card may not be compatible with the router. Wrong Size SIM. Winegard Routers only support standard "mini" size SIMs.
  2. Router Hardware Issue:
    1. The SIM card slot or reader in the router might be faulty.
    2. There could be a general hardware malfunction with the router.
  3. Firmware or Configuration Issue:
    1. Outdated software or incorrect settings might prevent the router from recognizing the SIM card.

Troubleshooting Steps:

If your Gateway or ConnecT 2.0 is showing a 'No SIM' error, here are the steps to troubleshoot and resolve the issue:

  1. Verify SIM Card Installation:

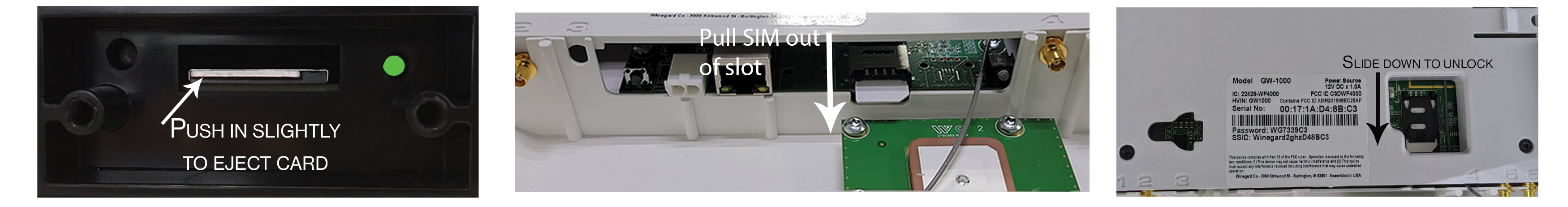

    1. Ensure the SIM card is properly inserted into the correct slot on the system. The metal electronic chip should face the electronics board, and the angled corner should be in the correct position. Incorrect insertion will prevent the SIM from being recognized and cause an error code to display.
  2. Check SIM Slot and Provider Selection:

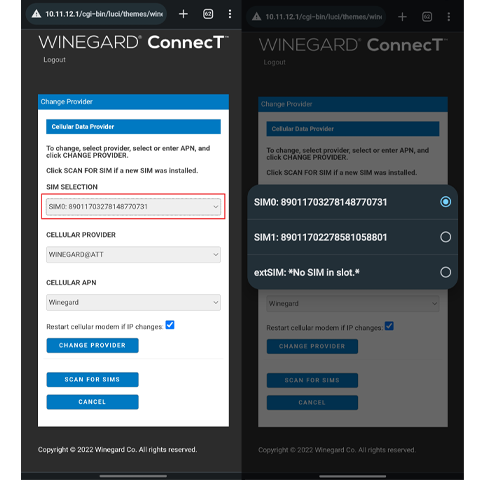

    1. Confirm that the SIM is installed in the correct slot and that the corresponding slot is selected on the Change Provider page. Navigate to the Status page of the Winegard software, then go to the Change Provider page, select the correct SIM from the SIM SELECTION drop-down menu, verify the cellular provider, and ensure the correct APN (Access Point Name) is listed.
    2. For Dual SIM Gateway try inserting the SIM into the other slot and Scan for SIMs.

  3. Clean SIM Card Contacts:
    1. Remove the SIM card and clean the contacts using a pencil eraser to ensure a good connection. Reinsert the SIM card and check if the issue is resolved.
  4. Reset the Router: Performing a Factory Reset on your Winegard Router
    1. Perform a factory reset by pressing and holding the reset button for 30 seconds. This can resolve various issues, including SIM card detection problems. The reset button is located next to the power connector.
  5. Power Cycle the system:
    1. Turn off the system, wait for about 30 seconds, and then turn it back on. This can help the system to re-detect the SIM card correctly
  6. Firmware Update:
    1. Ensure your system's firmware is up to date. Go to the Update Software page in the Winegard software and check for any available updates. Applying the latest updates can resolve compatibility and detection issues.
If none of the steps resolve the issue, submit a Support Ticket for further assistance. They may offer additional troubleshooting steps or arrange for a replacement if necessary.

Additional Tips:

Clean SIM Card Contacts: Gently clean the SIM card's metal contacts with a soft, dry cloth if they appear dirty. Do not use liquid to clean the SIM.
Check SIM Card Compatibility: Ensure the SIM card is compatible with the router. Only standard Mini-SIMs should be used.

By following these troubleshooting steps, you can potentially resolve the "NO SIM" error on your Winegard router and restore cellular connectivity.
