Winegard Router: Connect to WiFi Network (Easy Setup)

Winegard Router: Connecting your Winegard to WiFi

Winegard Connect and Gateways offer two ways to connect to the internet: via a cellular network (4G or 5G) or through a local WiFi network. This article will guide you through connecting your Winegard to a WiFi network.

What you'll need:

  • Your WiFi enabled device (laptop, smartphone, tablet)
  • Your Winegard SSID (network name) and password (found on the owner's manual or a sticker on the device itself)

Steps:

  1. Power on your Winegard Gateway.
  2. Connect your device to the Winegard WiFi network. This SSID will be different from your home WiFi network.
  3. Open a web browser on your device.
  4. In the address bar, type: 10.11.12.1 and press Enter. This will open the Winegard admin panel.
  5. Login using the default credentials:
    • Username: admin
    • Password: admin (It's recommended to change this password later for security reasons)

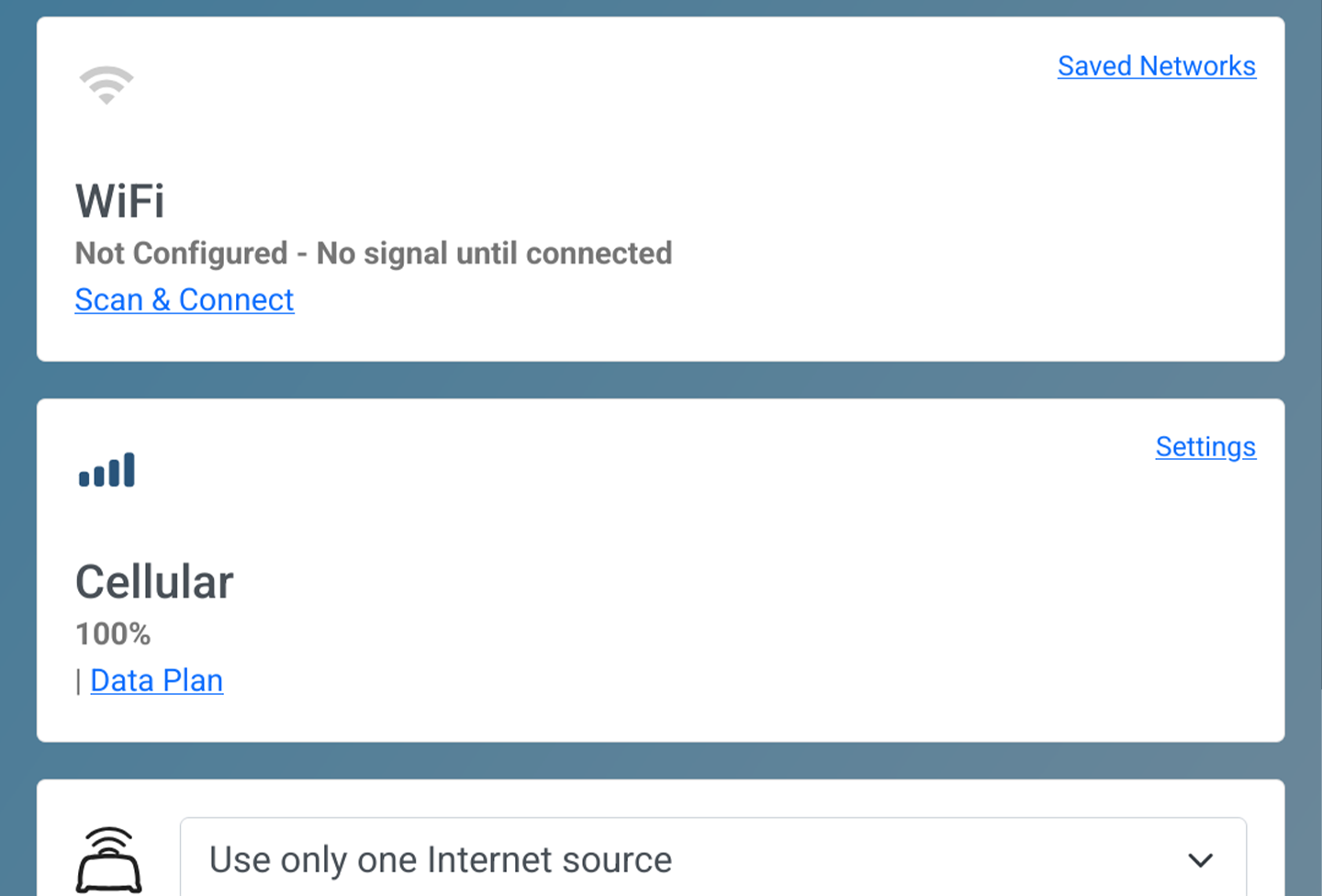

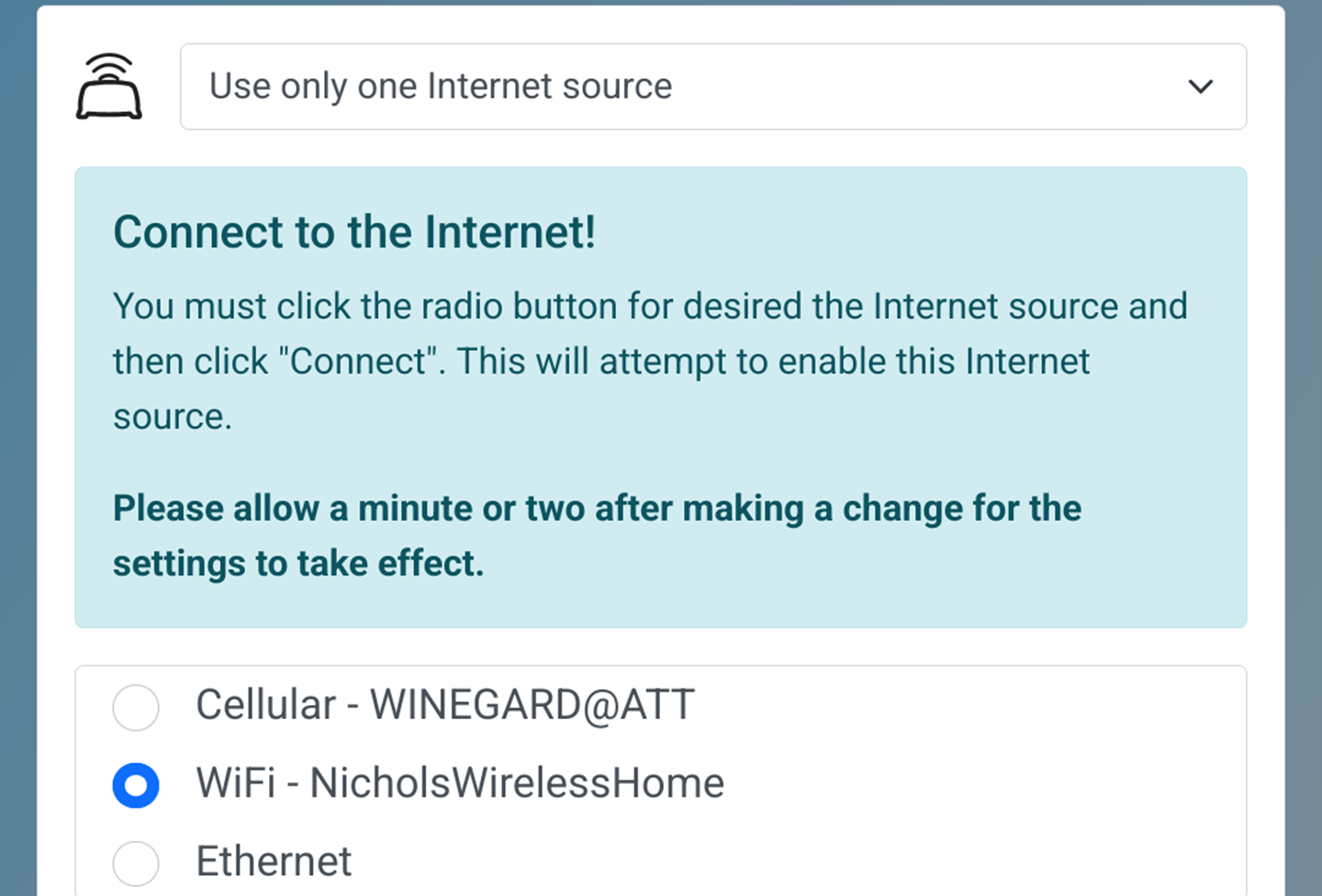

  6. Select "WiFi" as the internet access option.

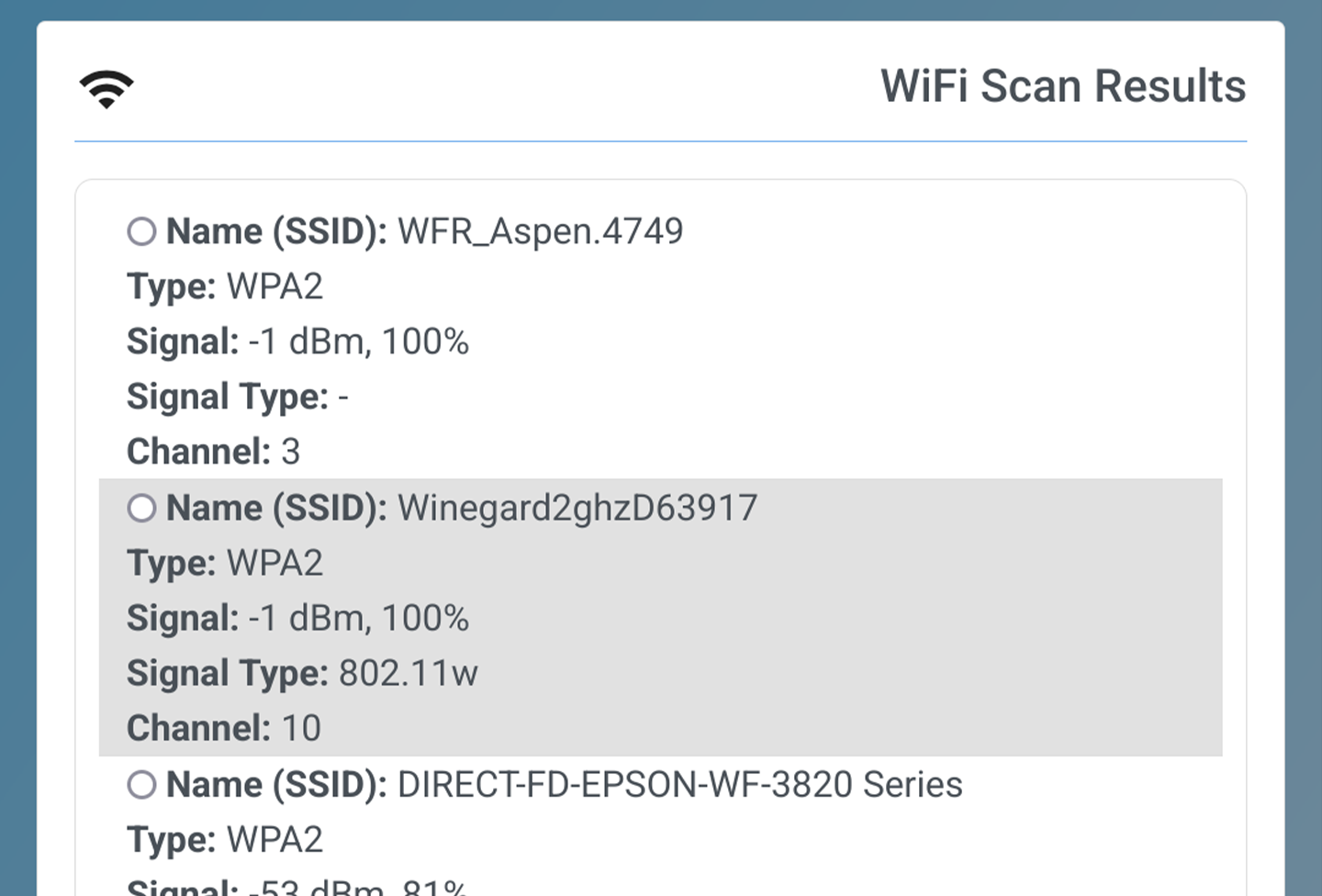

  7. Click "Scan for WiFi" or "Scan & Connect" This will display a list of available networks in range.



  8. Choose the desired WiFi network (SSID) you want to connect to

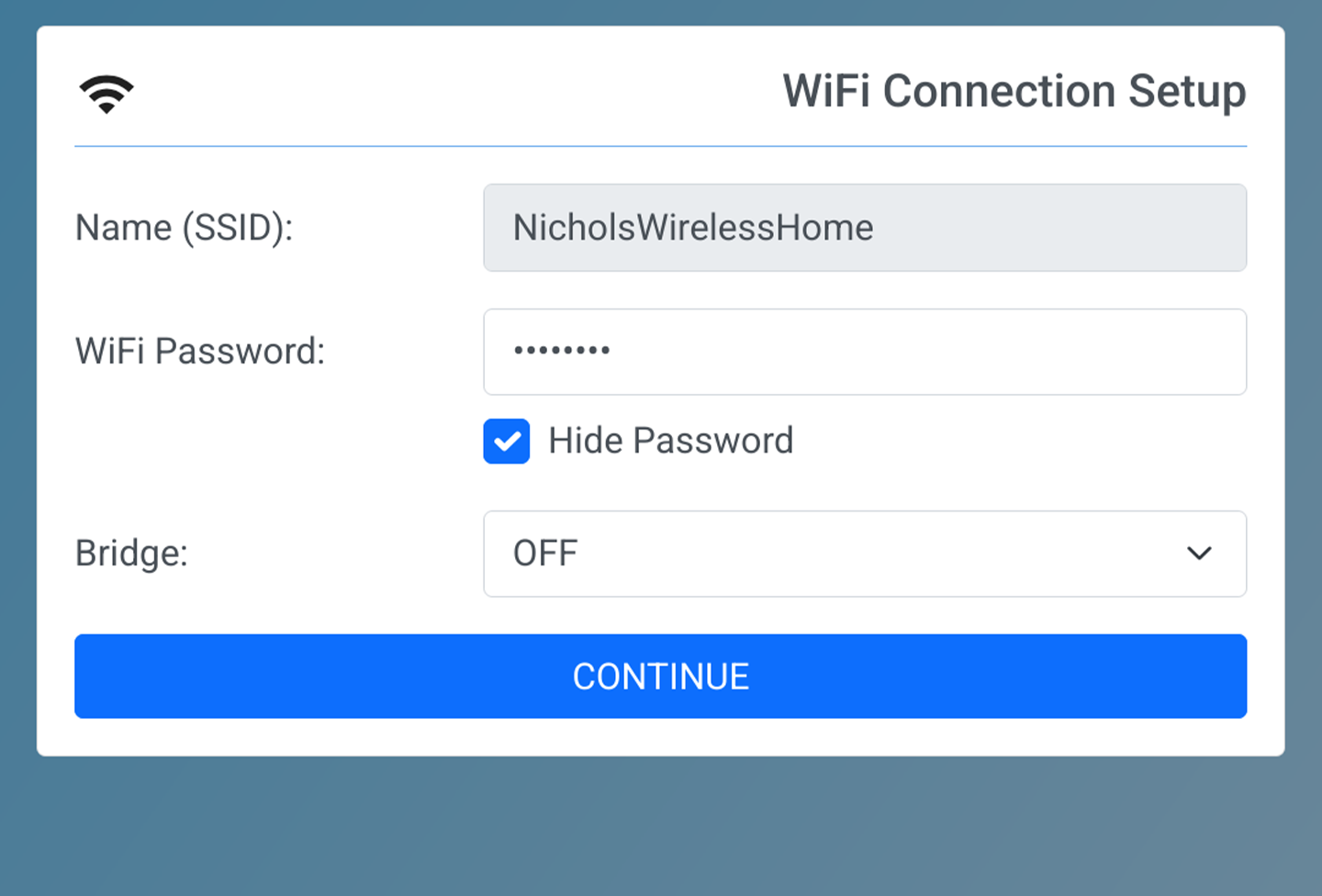

  9. Enter the WiFi network password when prompted.



  10. Click "Continue." The Winegard will attempt to connect to the network.

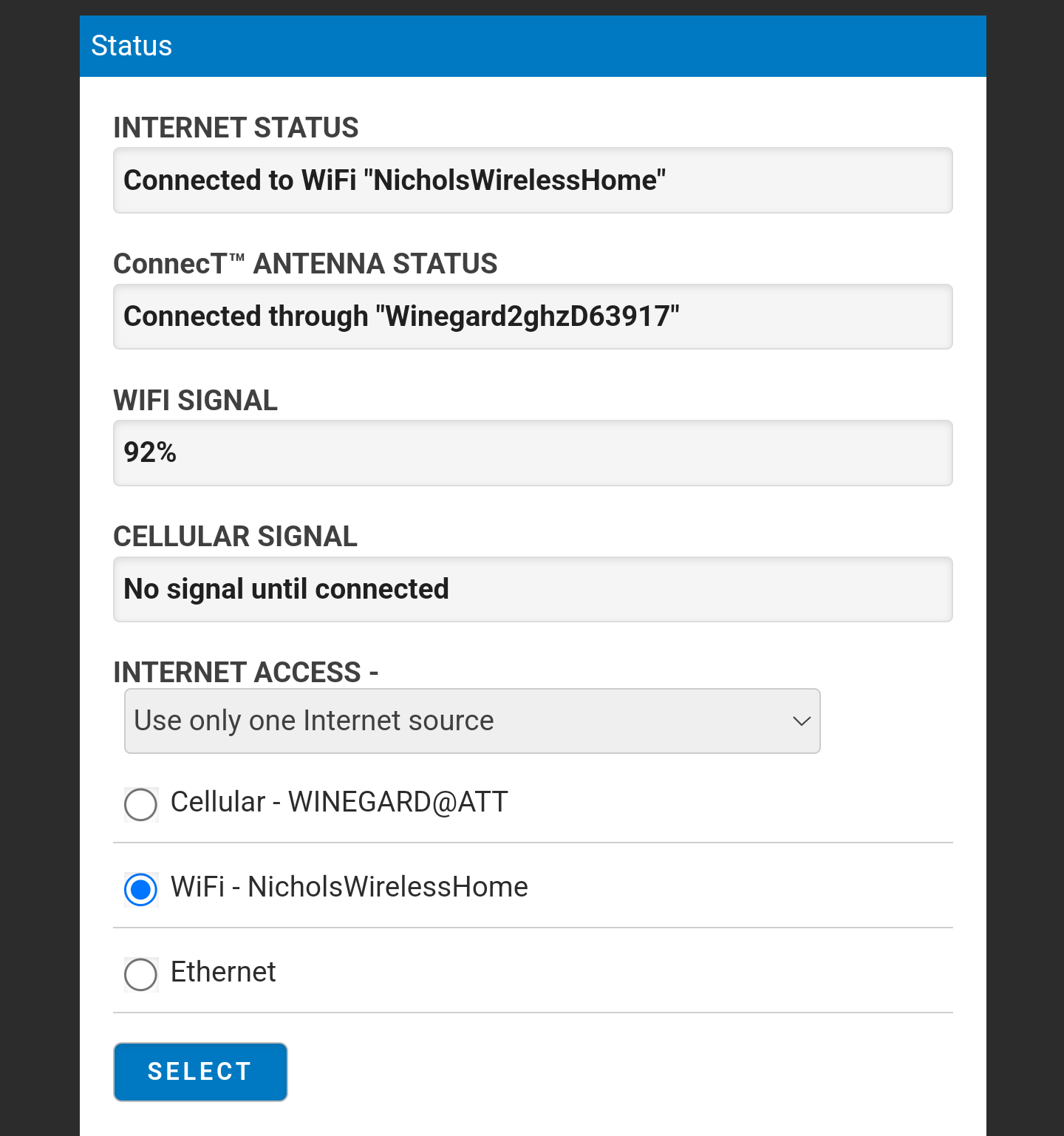

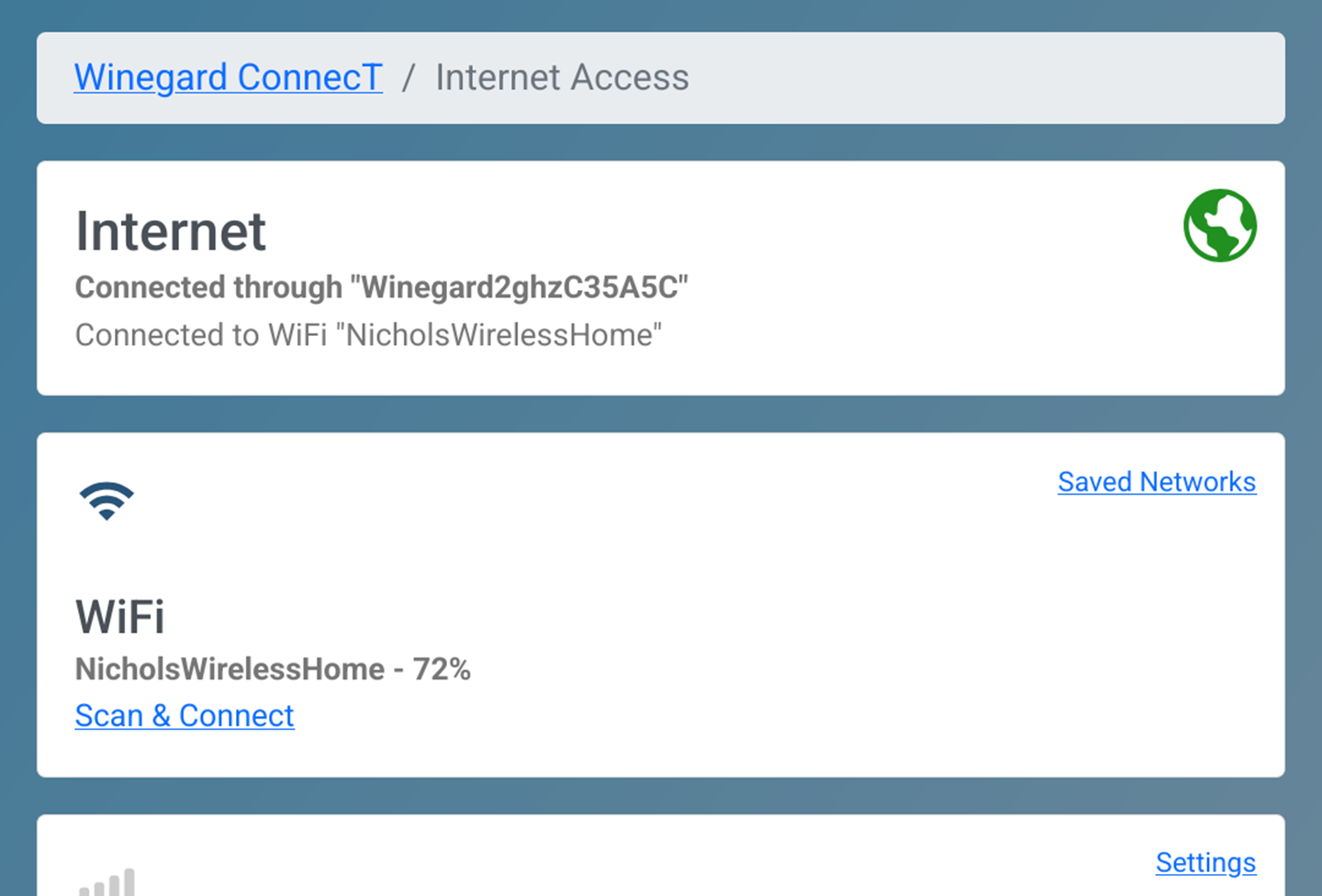

  11. The "Internet Status" field should display "Connected" after a successful connection (may take up to two minutes).



Troubleshooting:

  • If the Winegard fails to connect, ensure you entered the correct password for the WiFi network.
  • Double-check that you are connecting to the correct SSID (network name).
  • Reboot your Winegard and try again.

Additional Notes:

  • Some public WiFi networks require a "splash page" login before internet access is granted. In such cases, you may need to clear your browser cache after connecting for subsequent uses.
  • It's recommended to change the default admin password for your Winegard to improve security.

By following these steps, you should be able to connect your Winegard to a WiFi network and enjoy internet access on your devices.
