Winegard Router: Locating the IMEI Number

Winegard Router: Locating the IMEI Number

The IMEI (International Mobile Equipment Identity) and SIM ICCID (Integrated Circuit Card Identifier) are unique identifiers associated with your Winegard Connect device and its SIM card, respectively. These numbers are important for registering your device with your cellular provider, troubleshooting connectivity issues, and warranty claims. Here's how to locate the IMEI and ICCID numbers on your Winegard Connect device:

Method 1: Using the Manual - IMEI only

  1. Locate the user manual with your Winegard ConnecT product. The user manual comes included in the packaging with your device, RV manufacturers should include the manual for your product in the coach if the system was factory installed.

  2. Look for a sticker on the front cover of the user manual. This sticker often displays the default SSID (WiFi network name) and password for your Winegard ConnecT device. In addition to the SSID and password, the IMEI number will also be printed on this sticker.

Method 2: Accessing the Web Interface - IMEI and ICCID

  1. Ensure your device is powered on and connected to the Winegard ConnecT WiFi network.
  2. Open a web browser on a device connected to the Winegard ConnecT WiFi.
  3. In the address bar, type 10.11.12.1 and press Enter.
  4. Log in to the web interface using your admin credentials. The default username is admin and the default password is admin (it's recommended to change the password for security reasons).
  5. Steps may vary at this point depending on software version. If your login looks like the first image below proceed to step 6, if it looks like the second image below skip to step 7.



  6. Once logged in, the IMEI and ICCID(SIM) numbers can be found in the navigation menu on the left. If on mobile tap the three dashes in the upper right corner to view the navigation menu.

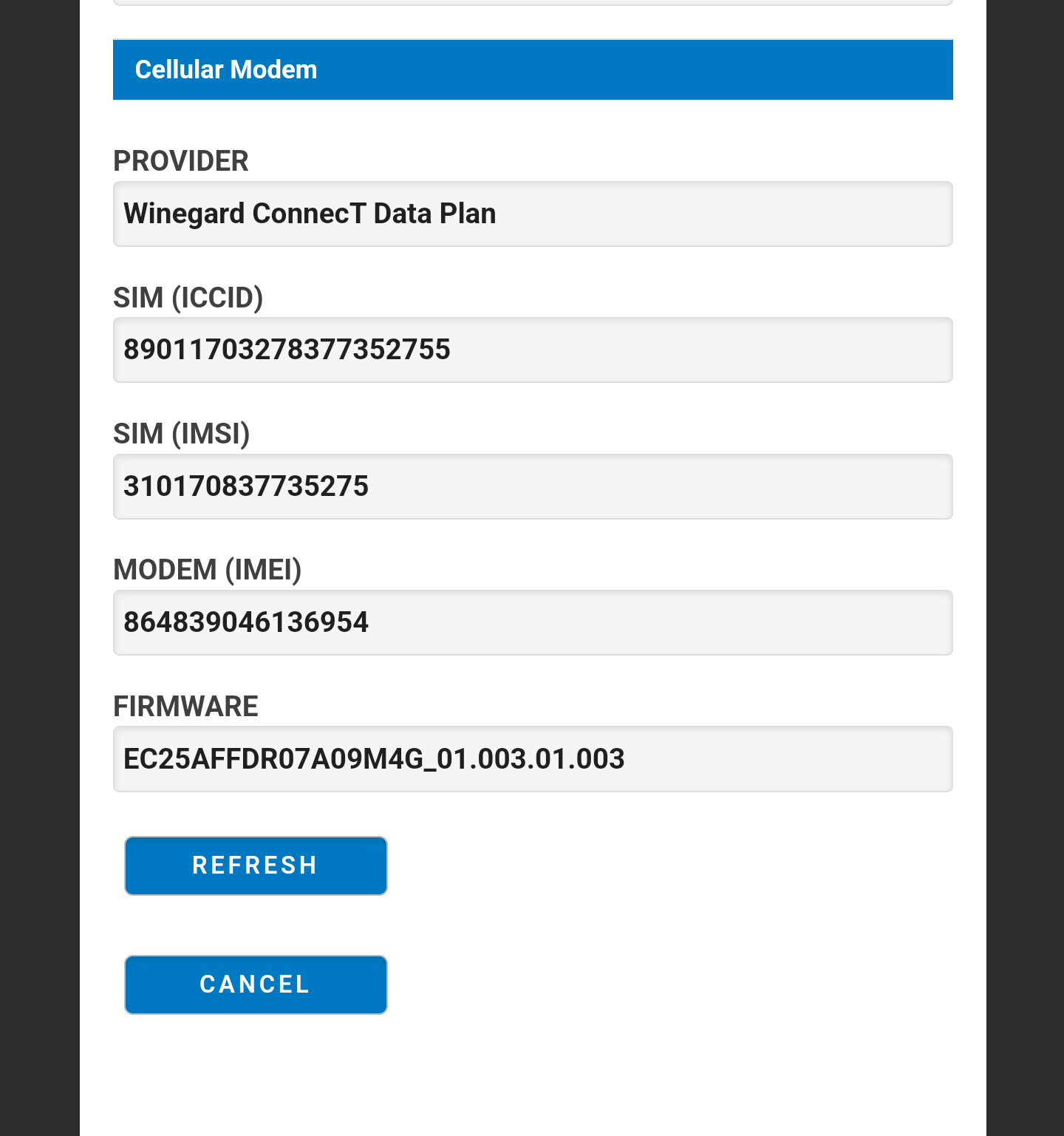

  7. Once logged in, navigate to the About page. The About page will display various information about your device, including the IMEI and ICCID.
